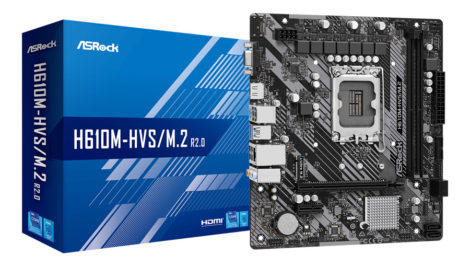

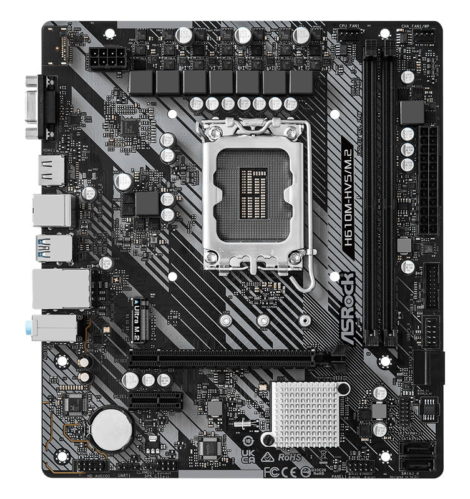

ASROCK μητρική H610M-HVS/M.2 R2.0, 2x DDR4, s1700, USB 3.2 Gen1, mATX
ASROCK
119.32€
ASROCK μητρική H610M-HVS/M.2 R2.0, 2x DDR4, s1700, USB 3.2 Gen1, mATX
Η H610M-HVS/M.2 R2.0 της Asrock είναι μια αξιόπιστη μητρική κάρτα, ιδανική για χρήση τόσο σε home PC όσο και σε bussiness PC. Κατασκευάζεται από αξιόπιστα components και εξοπλίζεται με όλες τις σύγχρονες τεχνολογίες που προσφέρουν αυξημένες ταχύτητες και σταθερή απόδοση. Υποστηρίζει επεξεργαστές οι οποίοι είναι συμβατοί με το socket s1700 και βασίζεται στο chipset H610 της Intel.
Διαθέτει δυο εξόδους γραφικών: D-Sub και HDMI.
-Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
-7 Phase Power Design
-Supports DDR4 3200MHz
-1 PCIe 4.0 x16, 1 PCIe 3.0 x1
-Graphics Output Options: HDMI, D-Sub
-Realtek ALC897 7.1 CH HD Audio Codec
-4x SATA3
-1x Ultra M.2 (PCIe Gen3 x4)
-4x USB 3.2 Gen1 (2 Rear, 2 Front)
-6x USB 2.0 (4 Rear, 2 Front)
-Realtek Gigabit LAN
Τεχνικά χαρακτηριστικά
CPU: Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700), 7 Power Phase design, Intel® Hybrid Technology, Intel® Turbo Boost Max 3.0 Technology
Chipset: Intel H610
Memory: 2x DDR4 DIMM Slots, Max. capacity of system memory: 64GB
Audio: 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec), Surge Protection
LAN: PCIE x1 Gigabit LAN 10/100/1000 Mb/s, 1x Realtek RTL8111H, Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az, PXE
Slots: 1x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode, Chipset:1x PCIe 3.0 x1 Slot (PCIE1)
Storage: 1x Ultra M.2 Socket (M2_2, Key M), 4x SATA3 6.0 Gb/s Connectors
Graphics: HDMI & D-Sub, Intel® Xe Graphics Architecture (Gen 12)
Form Factor: Micro ATX Form Factor: 8.76-in x 7.4-in, 22.3 cm x 18.8 cm
OS: Microsoft Windows 10 64-bit / 11 64-bit
Accessories: Quick Installation Guide, Support CD, I/O Shield, 2x SATA Data Cables, 1x Screw for M.2 Socket
Connector:
1x SPI TPM Header
1x Chassis Intrusion and Speaker Header
1x CPU Fan Connector (4-pin)*
1x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector
1x Front Panel Audio Connector
1x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Rear Panel I/O:
1x PS/2 Mouse/Keyboard Port
1x D-Sub Port
1x HDMI Port
2x USB 3.2 Gen1 Ports (Supports ESD Protection)
4x USB 2.0 Ports (Supports ESD Protection)
1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Εγγύηση : 24 μήνες
